# Device View

Device View helps IT support teams gain deeper insights into troubleshooting scenarios on a device level. Determine where an issue stems from and get a head start on resolution.

Inspect device properties and activities that span a period of up to 30 days.

## Required permissions for Device view <a href="#deviceview-requiredpermissionsfordeviceview" id="deviceview-requiredpermissionsfordeviceview"></a>

From the Nexthink web interface, go to **Administration >** [Roles](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/administration/account-management/roles.md) in the main menu to configure the role permission settings required by Device View:

1. Tick the following permissions under the **Diagnostics** drop-down:
   * **View device view** is the only mandatory permission.
   * Optional permissions:
     * **View all checklists** to view all checklists or map specific checklists to the user role.&#x20;
     * **Manage all checklists** to view all checklists or map specific checklists to the user role.&#x20;
     * **View Diagnostics dashboards**
2. If needed, tick the following permissions under the **Remote Actions** drop-down:
   * **Execute all remote actions** to execute any remote action or map specific remote actions to the user role.&#x20;
3. If needed, tick the following permission under the **Investigations** drop-down:
   * **Create investigations**
4. If needed, tick the following permission under the **Applications** drop-down:
   * **View all application dashboards** to allow users to access the Applications dashboards.
5. If needed, tick the following permission under the **Collaboration Tools** drop-down (Collaboration Experience license from Nexthink):
   * **View all collaboration tools dashboards** to allow the users to access the Collaboration Tools dashboards.

### View domain <a href="#amplify-dataprivacysettingsforamplify" id="amplify-dataprivacysettingsforamplify"></a>

The table below showcases what users with full and limited view domain access can do, assuming the necessary permissions are enabled.

| Permission       | Full access                                                                                                                                                                                                                                              | Limited access                                                                                                                                                                                                                                           |
| ---------------- | -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| View device view | <img src="https://268444917-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxJSUDk9NTtCHYPG5EWs3%2Fuploads%2Fxe9qrauGrjOJZofKmIuR%2Fimage.png?alt=media&amp;token=9d5e2cb5-213d-4ef7-a437-026ef7ef7bfc" alt="" data-size="original"> | <img src="https://268444917-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxJSUDk9NTtCHYPG5EWs3%2Fuploads%2Fxe9qrauGrjOJZofKmIuR%2Fimage.png?alt=media&amp;token=9d5e2cb5-213d-4ef7-a437-026ef7ef7bfc" alt="" data-size="original"> |

## Accessing Device view <a href="#deviceview-accessingdeviceview" id="deviceview-accessingdeviceview"></a>

Access Device View depending on your preferences and requirements:

* Access through Search
* Access through Investigations

### Accessing Device View through Search <a href="#deviceview-accessingdeviceviewthroughsearch" id="deviceview-accessingdeviceviewthroughsearch"></a>

1. Select the [Search](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/search-and-nexthink-assist.md) option from the main menu and start typing the name of the device.
2. Select the device from the results under **Devices**.
3. Click **Open device view** in the right column.

<figure><img src="https://268444917-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxJSUDk9NTtCHYPG5EWs3%2Fuploads%2Fgit-blob-358afde35bf9ef26f54762503cfcf18c5dd9da92%2Fdeviceview-1710429394.png?alt=media" alt="Accessing Device View through Search." width="760"><figcaption></figcaption></figure>

### Accessing Device View through Investigations <a href="#deviceview-accessingdeviceviewthroughinvestigations" id="deviceview-accessingdeviceviewthroughinvestigations"></a>

1. Select **Investigations** from the main menu to create or edit an existing investigation.
2. Enter an NQL query in the **NQL Editor** to return a device or a list of devices.
3. Click on the device name or click on the action menu next to it and select **Open device view** in a new tab.

<figure><img src="https://268444917-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxJSUDk9NTtCHYPG5EWs3%2Fuploads%2Fgit-blob-0f02b76bc0a8801cbe4f31fc5302f4f06f0d5900%2Fdv-1700045585.png?alt=media" alt="Accessing device view through Investigations" width="760"><figcaption></figcaption></figure>

**NQL example for a device investigation**

Return a device with the name `"MyDeviceNameExample"`.

```
devices
| where device.name == "MyDeviceNameExample"
```

{% hint style="info" %}
Refer to the [NQL](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/nexthink-query-language-nql.md) documentation for more information about how to write queries.
{% endhint %}

## Using Device View <a href="#deviceview-usingdeviceview" id="deviceview-usingdeviceview"></a>

Find on the Device View page:

* The **Timeline** tab allows you to explore events in chronological order on the device, with the ability to gain further insights using intuitive tooltips and a right-side panel. Additionally, you can drill down the timeline sections into specific events to gain a detailed view of various activities.
  * Refer to the [Timeline](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/device-view/timeline.md) documentation to learn how to use and interpret the timeline.
* The **Checklists** tab provides you with immediate insights into key device attributes.
  * Refer to the [Checklists](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/device-view/checklists.md) documentation to learn how to use, format and interpret default and custom checklists.
* The **Network** tab allows you to visualize and troubleshoot network-related issues prefiltered to the device in question. The Network tab is aligned to the timeframe selected within the **Timeline** tab.
  * Refer to the [Network view](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/network-view.md) documentation to learn how to use and interpret the network view visualization.

In addition, the Device View allows you to:

* Use the Device View [right-side panel](#deviceview-usingthedeviceviewright-sidepanelright-sidepanel) for insightful information and drill-downs, including a remote action list to execute associated actions on a device.
* Access the **User Overview** dashboard for a comprehensive overview of a user's digital experience with dedicated tabs for areas like DEX, application usage, and virtual session performance.
  * Refer to the [User Overview](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/device-view/user-overview.md) documentation for more information

{% hint style="info" %}
The thresholds for the metrics under **Device Performance** within the **Timeline** tab align with the [DEX score thresholds](https://edocs.nexthink.com/nexthink-infinity/infinity-specifications/digital-employee-experience-dex-specifications/list-of-hard-metrics-and-thresholds), meaning you can evaluate how troubleshooting at the device level impacts the DEX score.&#x20;
{% endhint %}

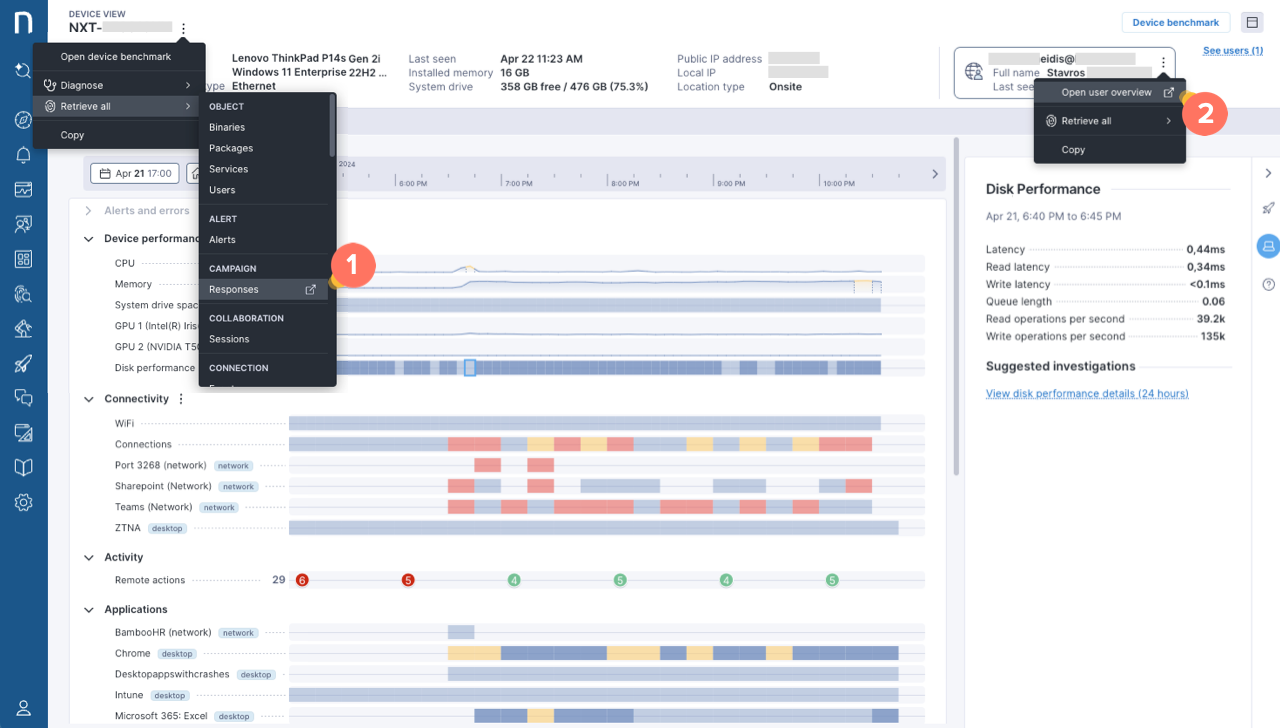

### Accessing User Overview and device-specific drilldowns <a href="#deviceview-accessinguseroverviewanddevice-specificdrilldowns" id="deviceview-accessinguseroverviewanddevice-specificdrilldowns"></a>

To access device-specific benchmarks, investigations and dashboards, from the Device View page:

1. Choose one of the options from the action menu next to the device name in the top-left corner to access:
   * **Open device benchmark** dashboard.
   * **Diagnose** for diagnostics dashboards.
   * **Retrieve all** pre-filled investigation queries in a device context.

To access the [User Overview](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/device-view/user-overview.md) dashboard, from the Device View page:

2. Click **Open user overview** from the action menu next to the user name in the top-right corner.

<figure><img src="https://268444917-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxJSUDk9NTtCHYPG5EWs3%2Fuploads%2Fgit-blob-3d69c026a225f0a45300a1fe5c888c5f7b4c317d%2Fdev-1713780037.png?alt=media" alt="DEV-1713780037.png" width="760"><figcaption></figcaption></figure>

{% hint style="info" %}
You can **Copy** the device or user information if needed.
{% endhint %}

### Using the Device View right-side panel <a href="#deviceview-usingthedeviceviewright-sidepanelright-sidepanel" id="deviceview-usingthedeviceviewright-sidepanelright-sidepanel"></a>

Depending on the Device View tab you open, the right-side panel displays different content:

* When you open the [Timeline](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/device-view/timeline.md) tab, click the device icon on the right-side panel to view details of selected timeline events.&#x20;
* When you open the **Timeline**, [Checklists](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/device-view/checklists.md), or [Network](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/network-view.md) tab, click the **Actions** icon on the right-side panel to view a list of all [remote actions](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/remote-actions.md) and [workflows](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/workflows.md) available for your user [role](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/administration/account-management/roles.md).
  * Hover over a remote action or workflow to reveal the action menu:
    * Select **View results** to navigate to the Investigations page with the remote action or workflow results.
    * Choose **Execute action** to run the remote action or workflow on the selected device.

<figure><img src="https://268444917-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxJSUDk9NTtCHYPG5EWs3%2Fuploads%2FYwREzdKny4sAys3y9Dvm%2FDeviceView-17199308334567.png?alt=media&amp;token=932b0a82-e8e2-4430-8255-1f17fe7ed6ac" alt="Device View right-side panel: Actions."><figcaption></figcaption></figure>

{% hint style="info" %}
Refer to the [Using Device View for call quality issues](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/collaboration-experience/using-device-view-for-call-quality-issues.md) documentation to learn how to use the **Timeline** and **Checklists** tabs to troubleshoot collaboration tools.
{% endhint %}

***

RELATED TOPICS:

* [Checklists](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/administration/content-management/checklists-management.md)
* [Investigations](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/investigations.md)
* [Network view](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/network-view.md)
* [Ratings](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/administration/content-management/ratings-management.md)
* [Timeline](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/device-view/timeline.md)
* [Using Device View for call quality issues](/platform/~/changes/Sh4xqs4GDClkDKT9Hvux/user-guide/collaboration-experience/using-device-view-for-call-quality-issues.md)


---
