# Configuring webhook NQL conditions

Write a query for the **NQL conditions** field of a webhook using:

* [NQL tables](#configuringwebhooknqlconditions-nqltablessupportedbywebhooks) and [NQL properties](#configuringwebhooknqlconditions-nqlpropertiessupportedbywebhooksnqlpropertieswebhooks) supported by Webhooks.
* [NQL operators ](#configuringwebhooknqlconditions-nqloperatorssupportedbywebhooks)supported by Webhooks.

## NQL tables supported by Webhooks <a href="#configuringwebhooknqlconditions-nqltablessupportedbywebhooks" id="configuringwebhooknqlconditions-nqltablessupportedbywebhooks"></a>

Find below the NQL tables supported by Webhooks in the format of `<namespace>.<table>`.

The system displays an error message when saving a webhook configuration with unsupported NQL objects in the **NQL conditions** field, even for valid syntaxes.

{% hint style="info" %}
Jump to the end of the page for [examples of NQL conditions for Webhooks](#configuringwebhooknqlconditions-validnqlconditionsexamplesforalert-relatedwebhooksnqlconditionexampl).
{% endhint %}

| NQL objects supported by Webhooks   |
| ----------------------------------- |
| `alert.alerts`                      |
| `campaign.responses`                |
| `execution.crashes`                 |
| `device_performance.boots`          |
| `device_performance.system_crashes` |
| `device_performance.hard_resets`    |
| `remote_action.executions`          |
| `sessions`                          |
| `platform.audit_logs`               |
| `web.events`                        |
| `web.errors`                        |
| `web.page_views`                    |
| `web.transactions`                  |
| `workflow.executions`               |

### NQL properties supported by Webhooks <a href="#configuringwebhooknqlconditions-nqlpropertiessupportedbywebhooksnqlpropertieswebhooks" id="configuringwebhooknqlconditions-nqlpropertiessupportedbywebhooksnqlpropertieswebhooks"></a>

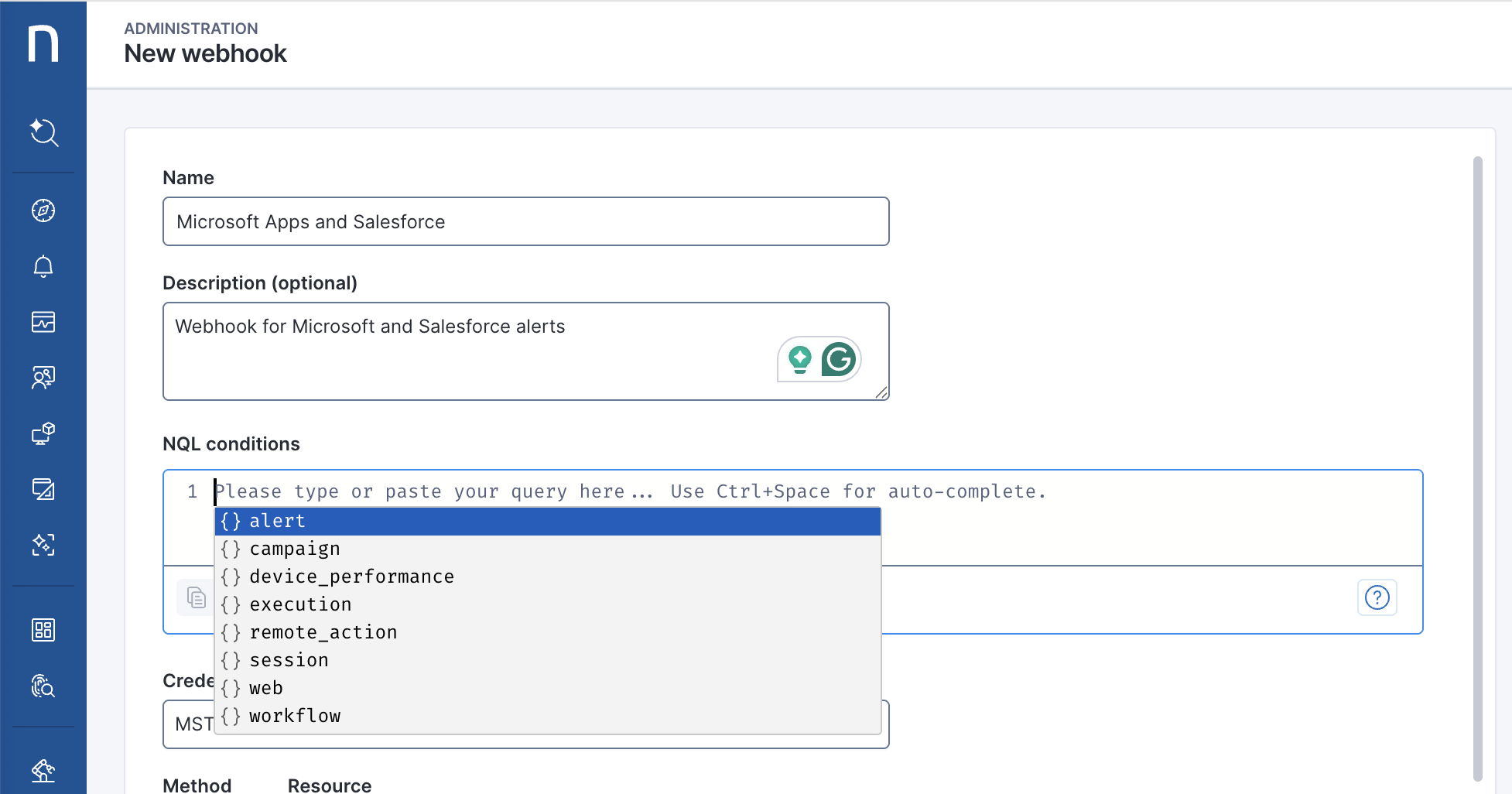

When writing the query in the **NQL conditions** field from the [webhook configuration](/platform/configuring_nexthink/bringing-data-into-your-nexthink-instance/integrating-nexthink-with-third-party-tools/outbound-connectors/webhooks/managing-webhooks.md#managingwebhooks-creatinganewwebhook) page, the system displays the supported NQL properties from the [NQL objects](#configuringwebhooknqlconditions-nqltablessupportedbywebhooks) listed above. See the image below.

<figure><img src="/files/GwGa43A0seCIdoBxbtRW" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
Using unsupported NQL table properties results in system errors, even for valid syntaxes.

Jump to the end of the page for [examples of NQL conditions for Webhooks](#configuringwebhooknqlconditions-validnqlconditionsexamplesforalert-relatedwebhooksnqlconditionexampl).
{% endhint %}

## NQL operators supported by Webhooks <a href="#configuringwebhooknqlconditions-nqloperatorssupportedbywebhooks" id="configuringwebhooknqlconditions-nqloperatorssupportedbywebhooks"></a>

Not all NQL operators are available to the customer. When working with punctual events, use the following subset of NQL operators.

| NQL Operator | Type       | Available in Webhook | Mandatory           |
| ------------ | ---------- | -------------------- | ------------------- |
| `where`      | selection  | Yes                  | No                  |
| `list`       | projection | Yes                  | Yes, at least once. |
| `and`        | filtering  | Yes                  | No                  |
| `or`         | filtering  | Yes                  | No                  |
| `contains`   | filtering  | Yes                  | No                  |
| `in`         | filtering  | Yes                  | No                  |

{% hint style="warning" %}
You must add every NQL field you use as a [placeholder](/platform/configuring_nexthink/bringing-data-into-your-nexthink-instance/integrating-nexthink-with-third-party-tools/outbound-connectors/webhooks/managing-webhooks/configuring-webhook-fields_-method-resource-and-payload.md#configuringwebhookfields-method-resource-andpayload-usingdatamodelvariablesasplaceholdersinthepayloa) in the webhook **Resource** or **Payload** to the `list` clause.

Even if you do not use any placeholders, still you must add one NQL field to the `list` clause.
{% endhint %}

## Valid NQL conditions examples for alert-related webhooks <a href="#configuringwebhooknqlconditions-validnqlconditionsexamplesforalert-relatedwebhooksnqlconditionexampl" id="configuringwebhooknqlconditions-validnqlconditionsexamplesforalert-relatedwebhooksnqlconditionexampl"></a>

Some of the following valid NQL query examples assume you previously defined the associated `alerts`. Refer to the [Getting started with Alerts](/platform/user-guide/alerts-and-diagnostics/getting-started-with-alerts.md) documentation for more information.

Valid NQL example.1 - Trigger a webhook when a monitor named “(…)” triggers an alert, and when the condition on a specific web application is met.

```
alert.alerts
| where monitor.tags contains "web-applications"
| where alert.context contains "*Salesforce*" or alert.context contains "*Microsoft*"
| list alert.monitor.name, alert.status, monitor.tags, alert.context, trigger_time, recovery_time, alert.monitor.thresholds, monitor.priority, alert.trigger_values, alert.trigger_reference_value, alert.recovery_values, alert.context, device_view_link , issue_view_link
```

Valid NQL example.2 - Trigger a webhook when a monitor named `“MS Teams crashes in the last 24 hours"` triggers an alert.

```
alert.alerts
| where monitor.nql_id == "#ms_teams_crashes_in_the_last_24_hours"
| list alert.context
```

Valid NQL example.3 - Trigger a webhook when a monitor with `high` priority triggers an alert.

```
alert.alerts
| where monitor.priority == high
| list alert.context
```

Valid NQL example.4 - Trigger a Webhook when a monitor named `“MS Teams crashes in the last 24 hours"` or `“Poor video quality for computers"` triggers an alert.

```
alert.alerts
| where monitor.name == "MS Teams crashes in the last 24 hours" or monitor.name == "Poor video quality for computers"
| list alert.context
```

Valid NQL example.5 - Trigger a Webhook when a monitor with `high` priority or monitor named `“MS Teams crashes for SD"`, and a tag that contains `“servicenow"` triggers an alert.

```
alert.alerts
| where monitor.priority == high or monitor.name == "MS Teams crashes for SD" and monitor.tags contains "servicenow"
| list alert.context
```

## Other valid NQL conditions examples for webhooks <a href="#configuringwebhooknqlconditions-othervalidnqlconditionsexamplesforwebhooks" id="configuringwebhooknqlconditions-othervalidnqlconditionsexamplesforwebhooks"></a>

Valid NQL example.6 - Filter the device boots that are equal to `fast_startup` and when the duration is greater than 200 seconds.

```
device_performance.boots
| where type == fast_startup and duration > 200s
| list device_performance.boot.type, device_performance.boot.duration
```

Valid NQL example.7 - Filter the device crashes by error code `335` or `49` that refer to a timeout situation.

```
device_performance.system_crashes
| where error_code == 335 or error_code == 49 and label in ["TIMEOUT"]
| list device_performance.system_crash.error_code
```

Valid NQL example.8 - Filter all the execution crashes for the binary **zoom.exe** that have crashed on start more than 5 times.

```
execution.crashes
| where binary_path in ["zoom.exe"] and number_of_crashes >= 5 and crash_on_start == true
| list execution.crash.number_of_crashes
```

Valid NQL example.9 - Filter remote actions by `nql_id` and completed without a status `[expired , failure , cancelled ]`.

```
remote_action.executions
| where remote_action.nql_id == "#update_binary" and status in [expired , failure , cancelled ]
| list remote_action.execution.outputs
```

Valid NQL example.10 - List answers, state, and details of a specific campaign.

```
campaign.responses
| where campaign.name == "campaign name"
| list answers , state , state_details
```

## Invalid NQL conditions for webhooks and common mistakes <a href="#configuringwebhooknqlconditions-invalidnqlconditionsforwebhooksandcommonmistakes" id="configuringwebhooknqlconditions-invalidnqlconditionsforwebhooksandcommonmistakes"></a>

Some of the following invalid NQL query examples assume you previously defined the associated `alerts`. Refer to the [Getting started with Alerts](/platform/user-guide/alerts-and-diagnostics/getting-started-with-alerts.md) documentation for more information.

Invalid NQL example.1 - Unsupported NQL tables, missing the `list` operator and wrong usage of the `in` operator.

```
device_performance.system_crashes
| where error_code == 335 or error_code == 49 and label in [*TIMEOUT*]
```

Invalid NQL example.2 - Unavailable properties and the wrong usage of the `in` operator.

```
alert.alerts
| where trigger_time == "2021-10-23" and monitor.tags in ["*Logitech*"]
| list alert.context
```

Invalid NQL example.3 - Unavailable operators.

```
devices
| with alert.alerts during past 7d
| summarize c1 = count() by sid
```

Invalid NQL example.4 - Unsupported NQL tables.

```
devices
| where device.operating_system.platform == Windows
| list device.name
```

Invalid NQL example.5 - Unsupported NQL operators.

```
devices
| with execution.crashes
| summarize count=count() by operating_system.name
```

Invalid NQL example.6 - Wrong value when comparing enums.

```
device_performance.BoOTS | where type == FULLboot
device_PErformance.BoOTS | where type == FULLboot
device_PErformance.BoOTS | where TyPe == FULLboot
device_performance . boots | where type == FullbooT
```

***
